OEM 24MHZ SMD Crystal Oscillator 6pf~30PF High Temperature -55~125℃

Brand Name : XTY

Model Number : 2016 24.000MHZ

Certification : SGS REACH ISO9001:2015

Place of Origin : China

MOQ : 1

Price : 0.15~0.12

Payment Terms : T/T

Supply Ability : 100k 2~3 weeks

Delivery Time : 15~21days

Packaging Details : 3000pcs/tape.

Size : 2.0*1.6mm

Frequency Stability : 10PPM

Load Capacitance : 6~30Pf

Aging : ±3 PPm/year

Factory : Yes

Shipping : EMS/DHL/FedEx/UPS/TNT

Contact Now

Product features

Ultra thin, thickness 0.6mm
Leadless type
High precision characteristic covering up to high frequency range
Designed for automatic mounting and reflow soldering
Emboss taping specification
The best choice of Bluetooth wireless communication sets.DSN,PDA and mobile phone

Product application

TPMS

Car Compass

Small intelligent machine

Product specification

Type		2016
Frequency Range(MHZ)		24.000 MHZ
Frequency Tolerance(at25℃)		±10PPm ±30PPm at25℃+/-2℃
Frequency Stability vs. Temp(FL-T)		±10PPm,±20PPm ,±30PPm
Operating Temperature range		-40~+85℃ -55~+125℃
Storage Temperature range		-45~+80℃
Temperature Characteristics		±10PPm ±20PPm
Load Capacitance		6 to 30 Pf or Serles
Aging		±3 PPm/year
Insulation Resistance		500MΩ(DC100V±15V)

Product advantage

The new Tianyuan in R & D, design, manufacturing, marketing and service as a whole, have a hundred grade purification workshop. The international advanced automated production lines, special test equipment, the latest technology and professional and technical personnel; has been preparing for the new Tianyuan own industrial park, to further expand the research and production of the higher requirements of the product.

OEM 24MHZ SMD Crystal Oscillator 6pf~30PF High Temperature -55~125℃

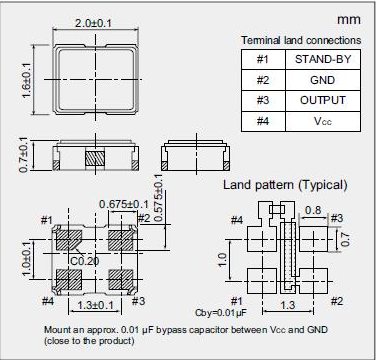

Dimension

OEM 24MHZ SMD Crystal Oscillator 6pf~30PF High Temperature -55~125℃

Refluence examination

Frequency change:≤±5ppm

FAQ

Packing

3000pcs/tape.

Samples and technical support can be provided free of charge.
